Specification
|
ITEM
|
VALUE
|
|
Place of Origin
|
China
|
|
Zhejiang
|
|
|
Brand Name
|
SANYUE
|
|
Model Number
|
YSQ1-63M/2P
|
|
Frame current
|
63
|
|
Product name
|

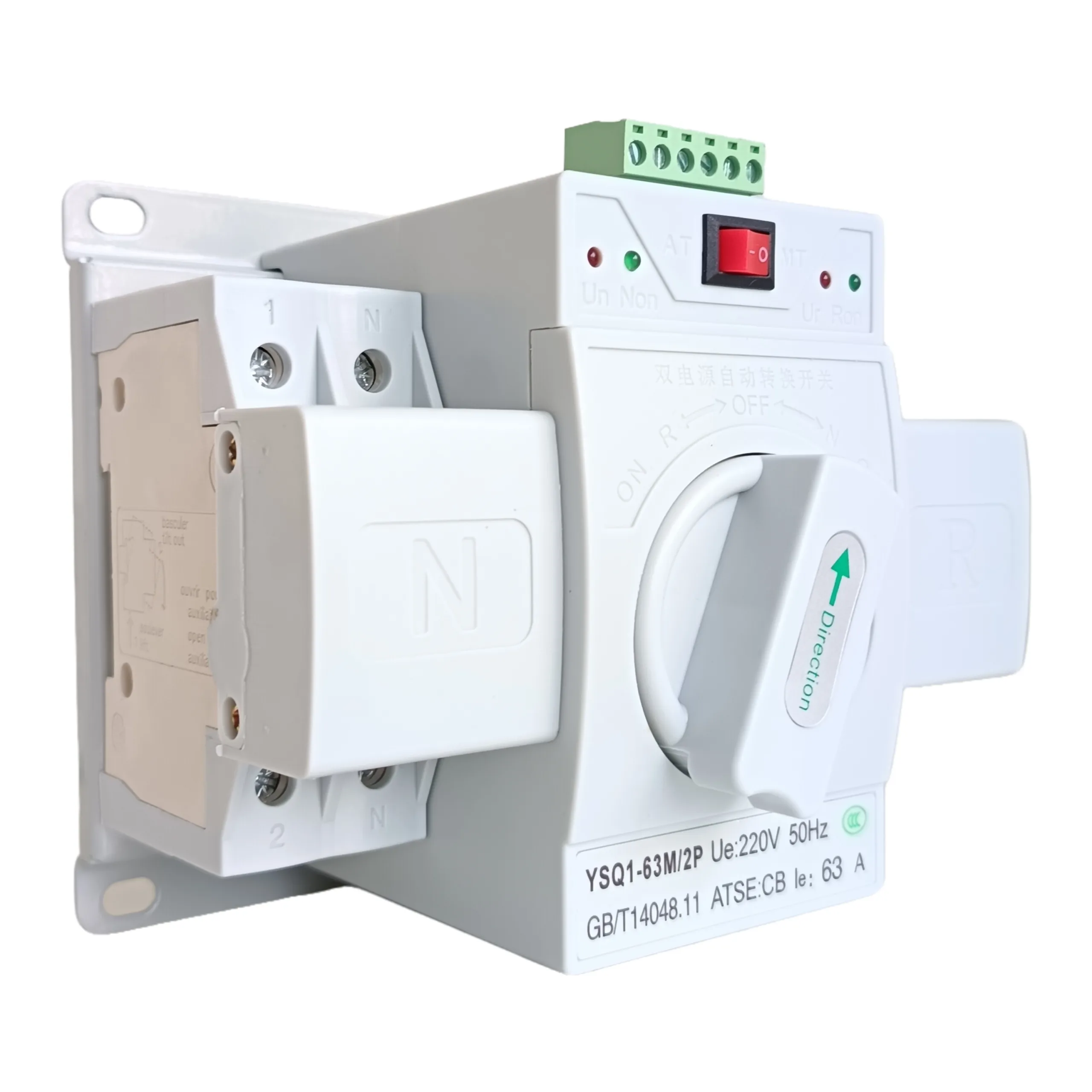

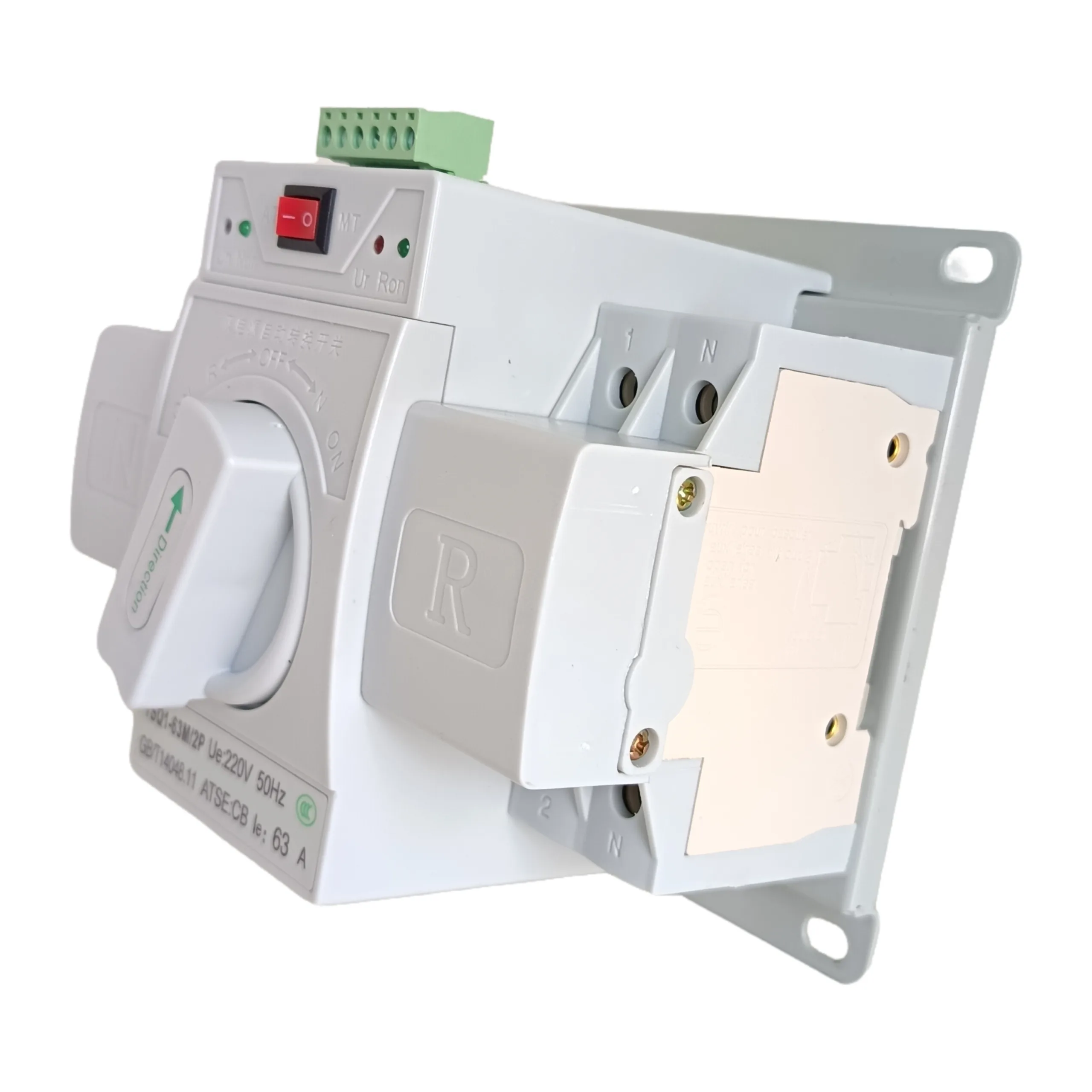

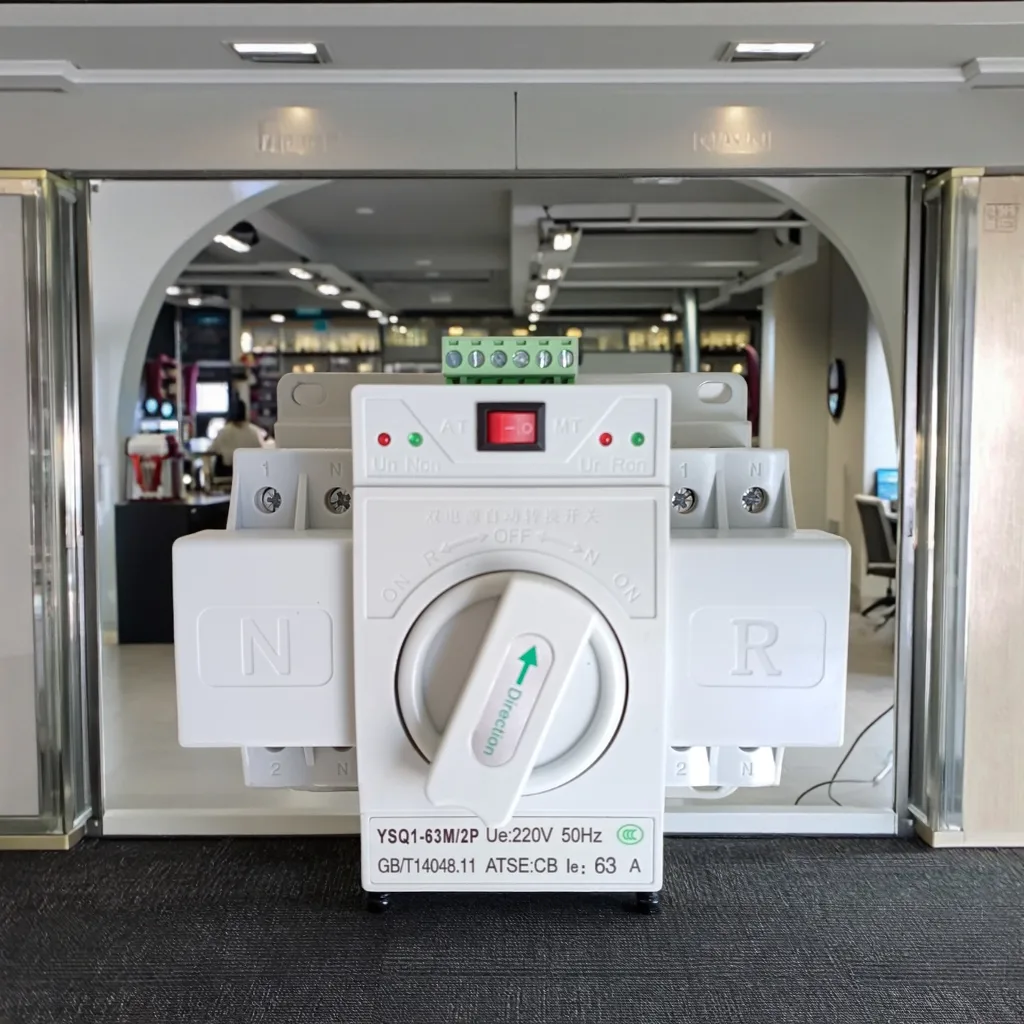

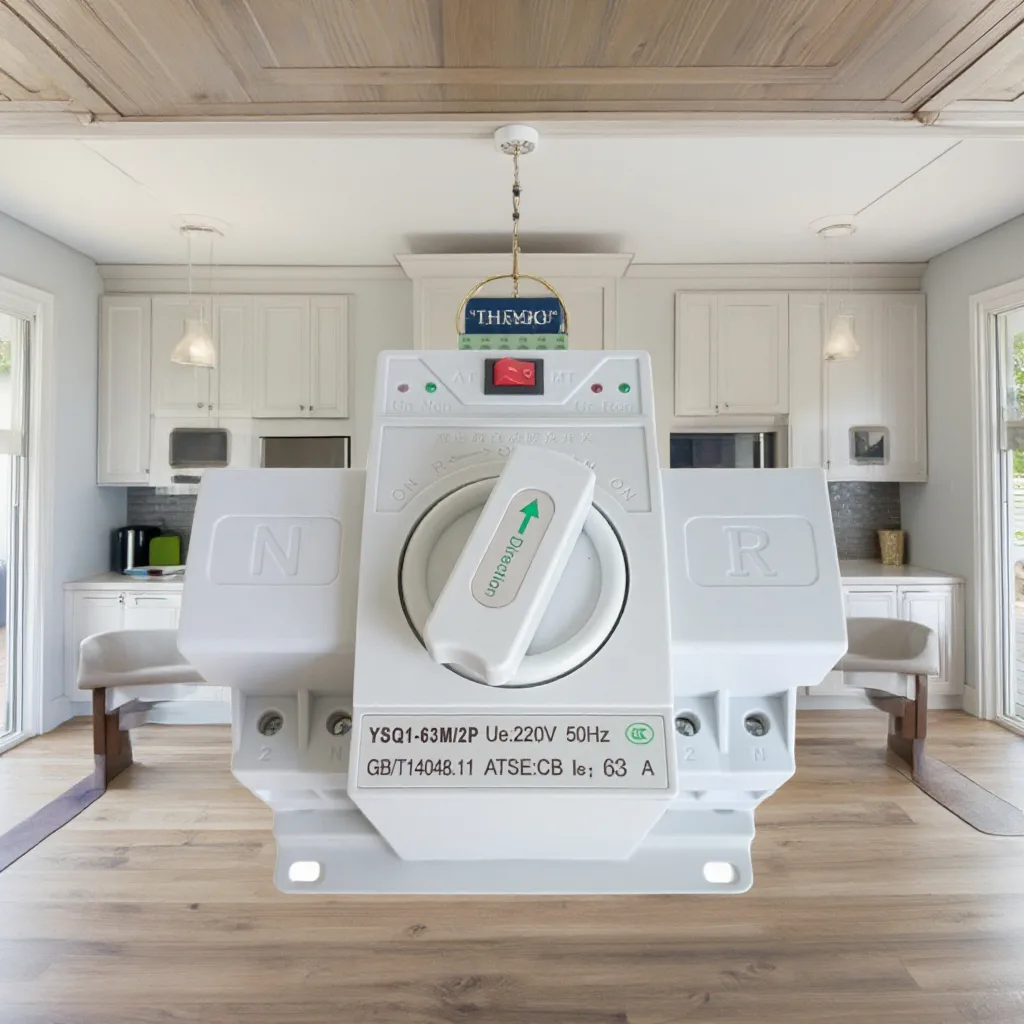

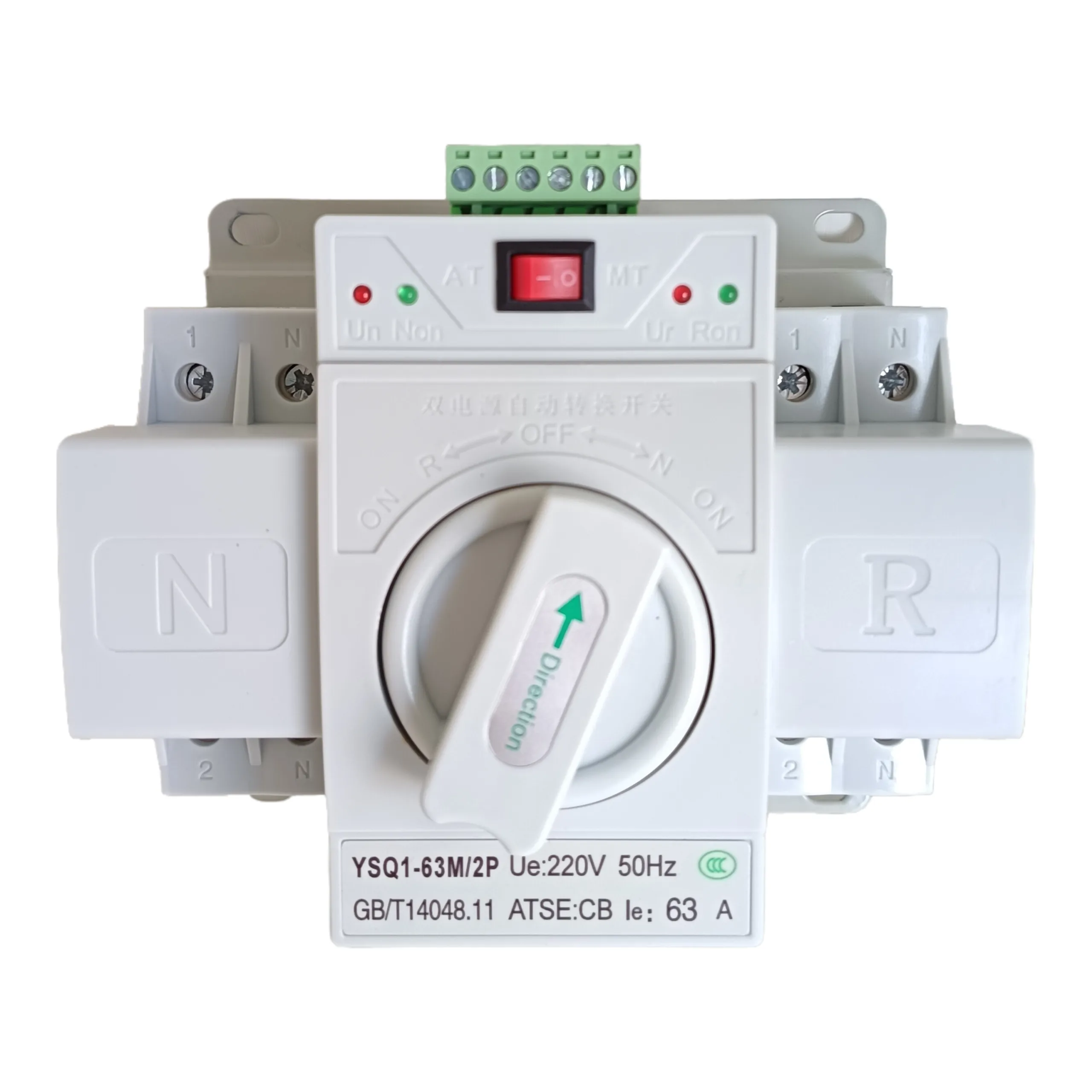

Automatic Transfer Switch
|
|
Type
|
CB
|
|
Pole
|
2 Pole
|
|
Rated current
|
63A
|
|
Rated voltage
|
220V
|
|
Control voltage
|
220V
|
|
Rated insulation voltage
|
500V
|
|
Rated frequency
|
50/60Hz
|
|
Use Category
|
AC-33iB
|
|
Switching time
|
1.5~3s
|
|
Customized support
|
OEM/ODM
|
Product performance
1. The transfer switch is a complete set composed of two microcircuit breakers, a motor and a mechanical rotating device, and the two power supplies are detected through the controller. When an abnormality occurs in the circuit, the controller makes a logical judgment on the detection results and drives the operating mechanism to open or close according to the controller's instructions,thereby ensuring the safe and reliable power supply to the load.
2. Connecting and disconnecting capacity
1. The transfer switch is a complete set composed of two microcircuit breakers, a motor and a mechanical rotating device, and the two power supplies are detected through the controller. When an abnormality occurs in the circuit, the controller makes a logical judgment on the detection results and drives the operating mechanism to open or close according to the controller's instructions,thereby ensuring the safe and reliable power supply to the load.
2. Connecting and disconnecting capacity
|
Usage
category
|
Contacting and disconnecting capacity conditions
|
|||||
|
I/le
|
U/Ue
|
Cos4
|
Power-on time S
|
Cyclic period(min)
|
Operation cycle times
|
|
|
AC-33iB
|
6.0
|
1.05
|
0.5
|
0.05
|
I/le
|
I/le
|
|
Note:AC-33iB under infrequent operation of the motor load or the mixed load containing the motor and resistance load
|
||||||
Product model definition
|
Enterprise Code
|
Product Code
|
Shell Currrent
|
Mini Type
|
Pole Number
|
Rated operating voltage
|
Rated operating current
|
|
YS
|
Q1
|
63
|
M
|
2P
3P
4P
|
AC 110V
AC 220V
AC 380V
|
10A 16A 20A 25A
32A 40A 50A 63A
|
Work environment
1) The altitude of the installation location shall not exceed 200m.
2) The upper limit of the surrounding air temperature shall not exceed +40℃, the lower limit shall not be lower than -5℃, and the average value within 24 hours shall not exceed +35℃.
3) The relative humidity of the atmosphere shall not exceed 50% when the surrounding air temperature is +40℃. At lower temperatures, higher relative humidity can occur. When the average minimum temperature in the wettest month is +25℃, the average maximum relative humidity is 90%. Special measures should be taken considering the creaming that occurs on the product surface due to changes in humidity.
4) The pollution level is at level III.
5) The operation site has no strong vibration and shock, no corrosive and destructive insulating harmful gases, no severe dust, no conductive particles and explosive hazardous substances, and no strong electromagnetic interference.
Important Notes
Installation, operation and disassembly of this product are prohibited for non-professionals.
The load capacity cannot exceed the rated capacity of the switch; otherwise, it will cause the switch to drag or be amaged.
It is not allowed to wrongly connect the neutral wire N to the phase wire. The phase sequence of the two power outputs should be consistent; otherwise, the product will be burned out. When choosing the 3P product, the neutral wires N of the normal and standby power supplies should be connected to the corresponding terminals; otherwise, the dual power supplies will not be able to work properly.
It is not suitable for direct outdoor operation; otherwise, it will shorten the service life or cause adverse reactions.
It should not be installed in places that are flammable, explosive, damp, exposed to direct sunlight, high temperature, subject to vibration or shock, etc.
1) The altitude of the installation location shall not exceed 200m.
2) The upper limit of the surrounding air temperature shall not exceed +40℃, the lower limit shall not be lower than -5℃, and the average value within 24 hours shall not exceed +35℃.
3) The relative humidity of the atmosphere shall not exceed 50% when the surrounding air temperature is +40℃. At lower temperatures, higher relative humidity can occur. When the average minimum temperature in the wettest month is +25℃, the average maximum relative humidity is 90%. Special measures should be taken considering the creaming that occurs on the product surface due to changes in humidity.
4) The pollution level is at level III.
5) The operation site has no strong vibration and shock, no corrosive and destructive insulating harmful gases, no severe dust, no conductive particles and explosive hazardous substances, and no strong electromagnetic interference.
Important Notes
Installation, operation and disassembly of this product are prohibited for non-professionals.
The load capacity cannot exceed the rated capacity of the switch; otherwise, it will cause the switch to drag or be amaged.
It is not allowed to wrongly connect the neutral wire N to the phase wire. The phase sequence of the two power outputs should be consistent; otherwise, the product will be burned out. When choosing the 3P product, the neutral wires N of the normal and standby power supplies should be connected to the corresponding terminals; otherwise, the dual power supplies will not be able to work properly.
It is not suitable for direct outdoor operation; otherwise, it will shorten the service life or cause adverse reactions.
It should not be installed in places that are flammable, explosive, damp, exposed to direct sunlight, high temperature, subject to vibration or shock, etc.
